Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Dry Type Transformers. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
FUOOTECH DAG-100 Transformer Dry Air Generator for transformer is mainly used to quickly and effectively provide dry air for transformers and other industrial equipment. It uses an air compression system, refrigerated air drying system, adsorption drying system, air purification system and PLC control system.
This air drying equipment and purification system use a low-pressure oil-free compression system and low-temperature condensed moisture removal technology, which can solve the problems of dirty oil caused by air, steam and dust.
FUOOTECH DAG-100 Transformer Dry Air Generator is suitable for supplying dry air that keeps the power equipment' inner parts from moisture in the maintenance of the transformer, reactor and other large power equipment.
This machine can ensure that the maintenance staff will not be short of oxygen when working inside of the equipment. It is more reliable economical convenient and safer than nitrogen. Therefore, it can shorten the maintenance period and improve the efficiency of maintenance quality.
Model: DAG-100 Transformer Dry Air Generator Air supply capacity: 100M3/h Working pressure: 0.6~0.8. Mpa Supply pressure: 0.05~0.5. Mpa Dew point: ≤-70°C Filtration accuracy: 0.01μm Exhaust oil content: ≤0.003mg/m3 Solid particle concentration: ≤0.01mg/ m3 Dry air temperature: 20~50°C adjustable Work cycle: 5-30.
Min adjustable Features Air compressors can work continuously and reliably without worker's supervision, diagnose fault and send alarming. It can restart automatically after power off. It adopts an advanced and reliable Microprogrammed Control Unit, it characterizes automatic timing, automatic switch of work.
This unit has a series of immediate display instruments such as power voltage, outlet air pressure, outlet air dew point, outlet air temperature, and absorption tour pressure, so it is very convenient for management. It is an integrated design, you can choose PLC to check parameters automatically.
It is easy to operate, safe and reliable to use, it can save energy. Small size, lightweight, easy installation and operation, energy-saving and high reliability.
With double screw air compressor, low temperature condensed to water : Size: Medium;Transport in Standard Exportation Plywood Case;Specification: 1880 * 1680 * 2040mm;Trademark: FUOOTECH;Origin: Chongqing, China;HS Code: .
Dry | Applications and Buyer Notes
Dry is organized as a sourcing-ready Dry Type Transformers reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questio
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Dry Type TransformersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Size
- MediumBased on visible page data; confirm exact value in the RFQ.
- Model
- DAG-100 Transformer Dry Air Generator Air supplyBased on visible page data; confirm exact value in the RFQ.
- power
- equipment' inner parts from moisture in the maintenance of the transformer, reacBased on visible page data; confirm exact value in the RFQ.
- Origin
- Chongqing, ChinaBased on visible page data; confirm exact value in the RFQ.
- Standard
- Exportation Plywood CaseBased on visible page data; confirm exact value in the RFQ.
- capacity
- 100M3/hBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Related keywords
DrySource mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Procurement sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100 315 Kva Three Phase Copper Wound Oil Immersed Distribution TransformerThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cables Busbar And Accessories categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Meters And Protection Devices categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Switchgear And Breakers categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Transformers And Substation Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Ip65 Switchgear Panels sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 11kv Distribution Transformers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Electrical Equipment Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kva 10kv Cast Resin Dry Type Transformer Ul Certified 10kv Cast Resin And Ul CertifiedThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kva 10kv Dry Type Transformer For Solar Power Systems 100kva And Solar Power SystemsThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10kv Power Supply Ring Main Unit Cable Accessories Ceramic Metal Silicone Rubber Epoxy Resin BushingThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Transformers Air Drying Dry Air Generator for Filling Dry Air to Transformer - Dry Air Generator andRequest Quote

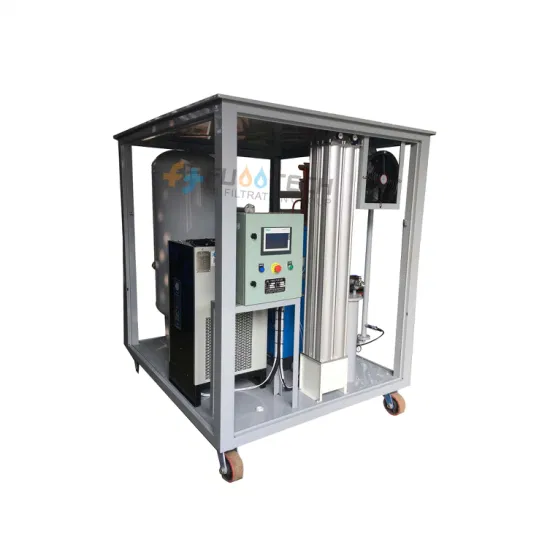

Dag-500 Effective Dry Air Compressor for Transformer - Dry Air Generator and Air Drying EquipmentRequest QuoteDry Air Pressure Compressor Machine for Distribution Transformer - Dry Air Generator and Air DryingRequest QuoteEffective Transformer Dry Air Generator for Power Station Onsite Use - Dry Air Generator and Air DryRequest QuoteFuootech Dag Dry Air for Electric Transformer Maintenance and Installation - Dry Air Generator and ARequest QuoteSlight Weight Size Good Dew Point Transformer Dry Air Generator - Dry Air Generattion Testing MachinRequest QuotePowerGridSource related sourcing paths
